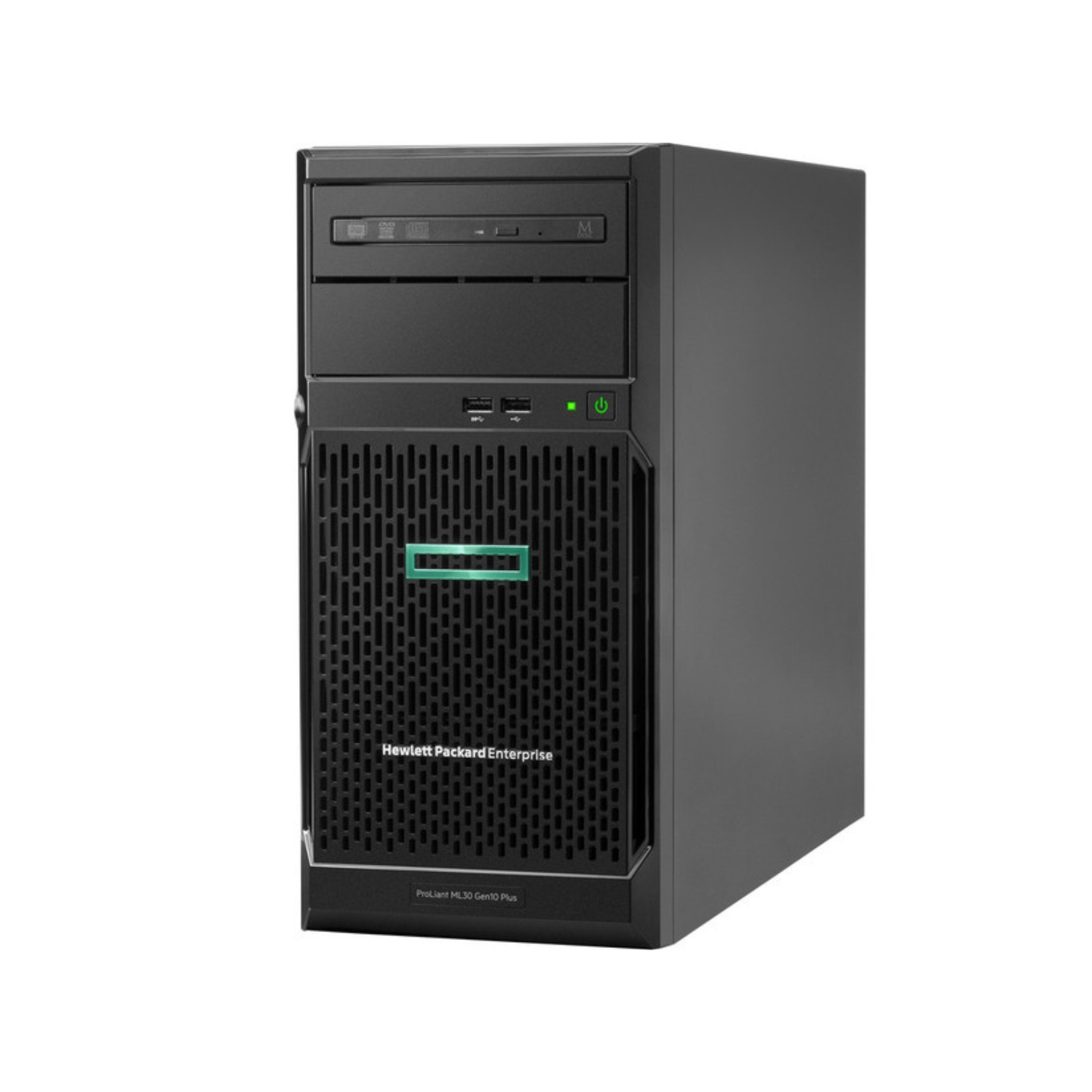

HPE ProLiant ML30 Gen10 Plus E-2314 Server

Processor:

It is equipped with an Intel Xeon E-2314 quad-core processor, which operates at a base frequency of 3.7 GHz.
The processor supports Hyper-Threading, allowing it to handle up to 8 threads simultaneously.

Memory:

The ML30 Gen10 Plus E-2314 server supports both ECC (Error Correcting Code) and non-ECC DDR4 memory.
It has a maximum memory capacity of 128 GB, utilizing four DIMM slots.
Memory speeds of up to 2666 MHz are supported.

Storage:

The server offers flexible storage options, including support for hot-plug LFF (Large Form Factor) and SFF (Small Form Factor) drives.
It supports up to four LFF drives or eight SFF drives, allowing for ample storage capacity.
RAID functionality is available for enhanced data protection.

Expansion Slots:

The ML30 Gen10 Plus E-2314 server provides four PCIe slots, including one PCIe 3.0 x16, two PCIe 3.0 x8 (one full-height/half-length and one low-profile), and one PCIe 3.0 x4 (dedicated for HPE internal SAS storage).

Networking:

It includes two embedded Gigabit Ethernet ports (10/100/1000Mbps) for network connectivity.
HPE’s optional FlexibleLOM technology allows for the addition of custom networking options.

Management and Security:

The server features HPE iLO (Integrated Lights-Out) 5, which enables remote server management and monitoring.
Enhanced security features are available, such as Silicon Root of Trust, Secure Recovery, and more.

Operating Systems:

The ML30 Gen10 Plus E-2314 server is certified to run various operating systems, including Windows Server, Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), and VMware ESXi.

Form Factor and Design:

It comes in a tower form factor, making it suitable for office environments.
The server is designed to be compact and easy to deploy.
